H-shaped steel is an economical and efficient profile with a more optimized cross-sectional area distribution and a more reasonable strength-to-weight ratio. It is named because its cross-section is the same as the English letter "H". It has strong bending resistance, efficient and simple construction, cost saving and light structure. Under normal circumstances, H-shaped steel below 9 meters can be driven and pulled out by excavator pile driver; H-shaped steel above 9 meters needs to be driven in by single-axis mixer, three-axis mixer or five-axis mixer, and pulled out by profile pile puller. Profile steel rake loader is a professional machine for pulling out H-shaped steel. H-shaped steel of conventional specifications used in support can be pulled out, and the length of the profile can reach about 22 meters.

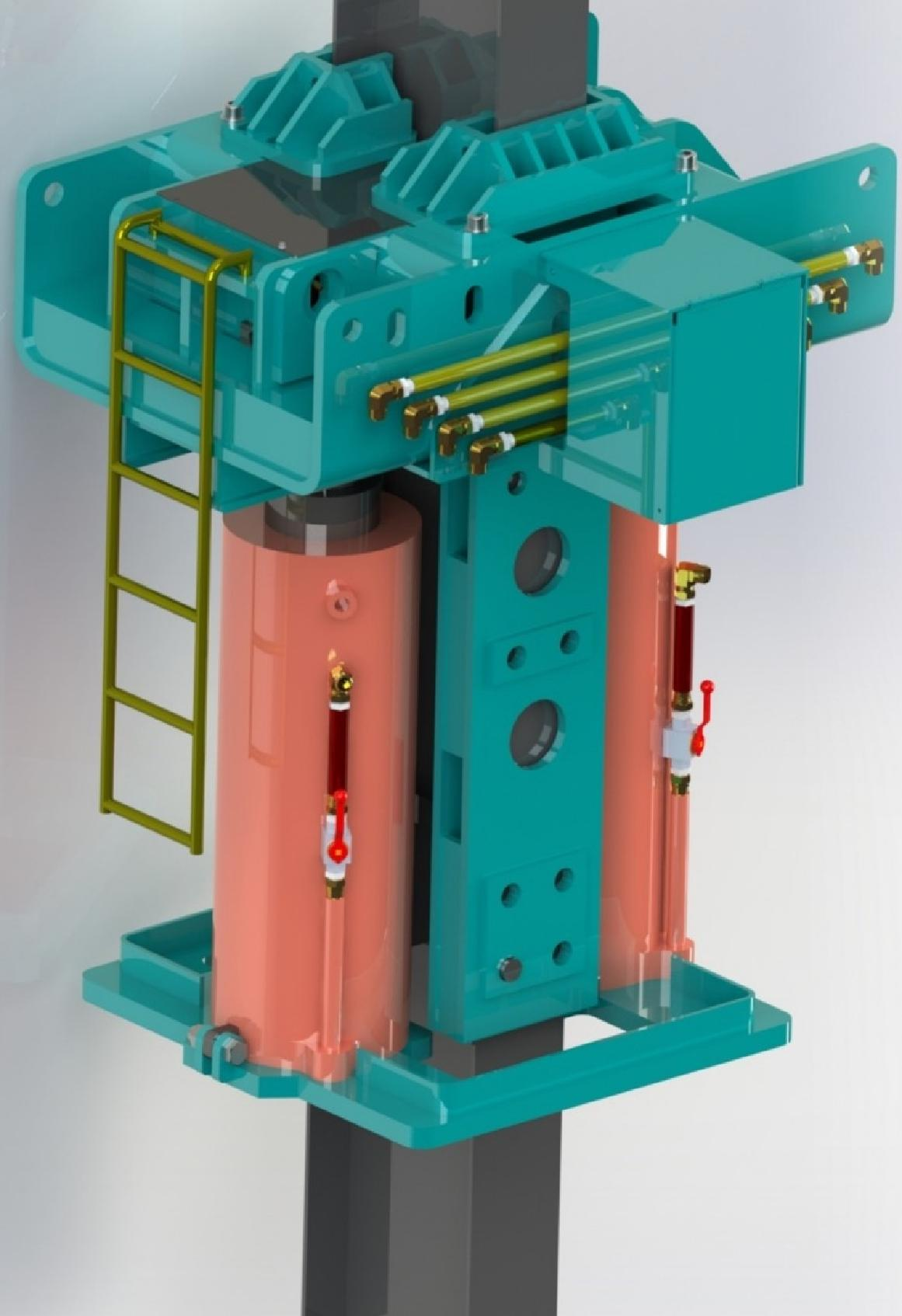

The H-type construction method pile puller organically combines the performance of the product with reliability, flexibility, safety and maintenance. It is suitable for "H"-shaped steel and construction operations. Unique side clamp, H-type construction method pile puller adopts a unique side clamp design to avoid the limitation of pile length, without the need to use an extension arm, and can pull piles up to 15 meters long. The operation of clamping or pulling piles is simple, and the technical requirements for construction safety on construction personnel are getting lower and lower.
Main application areas: Pulling H (工) type steel sheet piles: widely used in foundation engineering, building bridges, oil drilling platforms, etc.
| Model | Unit | KS-BZ800 |
| Maximum pulling force of pile extraction | T | 550 |
|
Maximum clamping force
|
T | 260 |
| Single-pull pile extraction stroke | mm | 1000 |
| Weight( Not including hydraulic station ) | KG | 5400 |
| Rated working pressure | Mpa | 26 |
| Compatible with H-shaped steel | mm | |
| Dimension | mm | 1650*1560*2100 |
