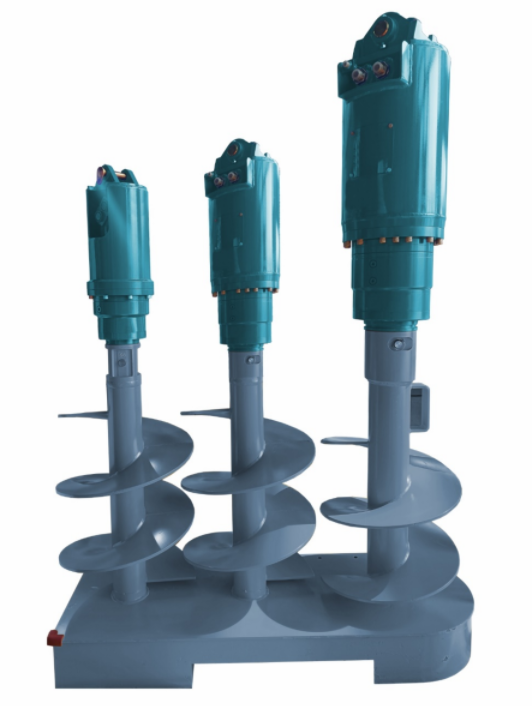

The Auger drilling is one of the attachments installed on the excavator. It is mainly composed of a driving head and a drill assembly that are fixedly connected. Different sizes of drill bits can be configured according to construction requirements and hydraulically driven to meet the construction requirements for the required hole size and depth. The auger drilling has a simple structure, strong drilling ability, high construction efficiency, low operating cost and high flexibility.
Sleeve telescopic shaft and diameter:
S4: 65mm round, length 0.5m 0.8m 1m, diameter 100-900mm
S5: 75mm square, length 1m 1.5m 2m, diameter 150-900mm
S6: 75mm square, length 1.5m 2m 3m, diameter 150-1200mm
Application areas: Fences, landscaping/tree planting, pile foundation engineering, screw pile installation, pilot hole drilling.
| Model | Unit | KS60Z | KS80Z | KS150Z | KS200Z | KS300Z |
| Matching type | T | 2-6 | 6-15 | 15-20 | 20-25 | 25-40 |
| Torque | nm | 1094-4117 | 2570-9961 | 5307-20998 | 8314-30393 | 27198-59403 |
| Pressure | Bar | 80-240 | 80-240 | 80-260 | 160-350 | 160-350 |
| Traffic | Lpm | 25-92 | 40-150 | 80-170 | 100-250 | 100-250 |
| Rotational speed | Rpm | 30-68 | 20-48 | 15-48 | 10-22 | 10-22 |
| Output shaft | mm | 65Rnd | 75Rnd | 75Rnd | 75Rnd | 110Rnd |
| Weight | KG | 110 | 115 | 200 | 721 | 721 |
| Maximum hole diameter(clay/sand) | mm | 300 | 800 | 1100 | 1200 | 1500 |
| Maximum hole diameter(Soil) | mm | 500 | 1000 | 1500 | 1600 | 2000 |
